| 品牌：cypress | 型号：CY3675-CLKMAKER |
The CY3675-CLKMAKER1 clock programming kit enables quick and easy configuration of Cypress’s programmable clocks for evaluation and development purposes. Combined with Cypress’s clock programming software, this kit enables configuration of the target device through a PC’s USB port.
NOTE: This kit alone cannot program a clock device. You must also purchase a socket adapter that supports your clock device (see table below for available socket adapters).
Clock programming kits
Kit Name | Description | Supported Devices |
CY3675 - CLKMAKER1 | Main Programming Board | NA |
Socket Adapter Kits (not included in CY3675-CLKMAKER1 kit. These are sold separately) | ||
CY3675 - LCC4A | Adapter Board for LCC4A Devices | CY25701, CY25702 |
CY3675 - QFN8A | Adapter Board for QFN8A Devices | CY22M1, CY22U1 |
CY3675 - SOIC8A | Adapter Board for SOIC8A Devices | CY25402, CY25403, CY25422, CY25423, CY25482, CY25483 |
CY3675 - QFN24A | Adapter Board for QFN24A Devices | CY2544, CY2545, CY2548 |
CY3675 - LCC6A | Adapter Board for LCC6A Devices | CY2X013, CY2X014, CY2XF23, CY2XF24, CY2XF32, CY2XF33, CY2XF34 |
CY3675 - TSSOP20B | Adapter Board for TSSOP20B Devices | CY25404 |
Hardware Description:

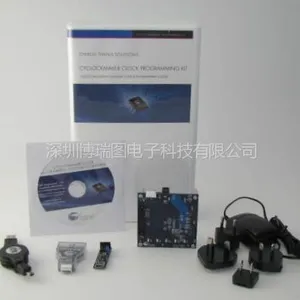

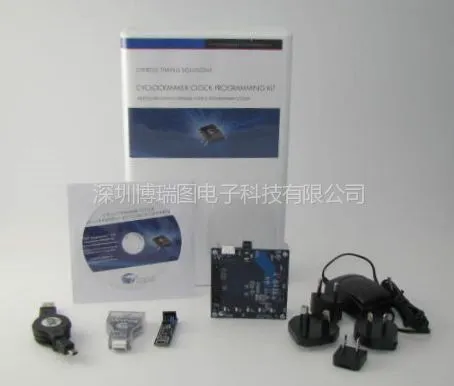

The CY3675-CLKMAKER1 Clock Programmer Kit contains:
CD with:
CY3675-CLKMAKER1 Clock Programming Kit Guide
Software installation file: PSoC Programmer
Main programming board (CY3675-CLKMAKER1)
I2C-USB Bridge (CY3240-I2USB)
PSoC® MiniProg (CY3217)
USB cable
15V 400mA power supply
Four power plug adapters
